DAHUA-IPC-HDW1431T1

· 4MP, 1/3” CMOS image sensor, low illuminance, high image definition
· Outputs 4MP (2560 × 1440) @25/30 fps, and supports max. 4MP
(2688 × 1520) @20 fps
· H.265 codec, high compression rate, ultra-low bit rate
· Built-in IR LED, max. IR distance: 30 m
· ROI, SMART H.264+/H.265+, flexible coding, applicable to various
bandwidth and storage environments
· Image Rotation, WDR, 3D NR, HLC, BLC, digital watermarking,
applicable to various monitoring scenes
· Abnormality detection: Motion detection, video tampering, network
disconnection, IP conflict, illegal access, voltage detection
· 12V DC/PoE power supply
· IP67, protection

DAHUA-IPC-HDW1431T1 System Overview

Name: DAHUA-IPC-HDW1431T1 | Bit To Byte
Price: 5600.00 BDT
Availability: InStock

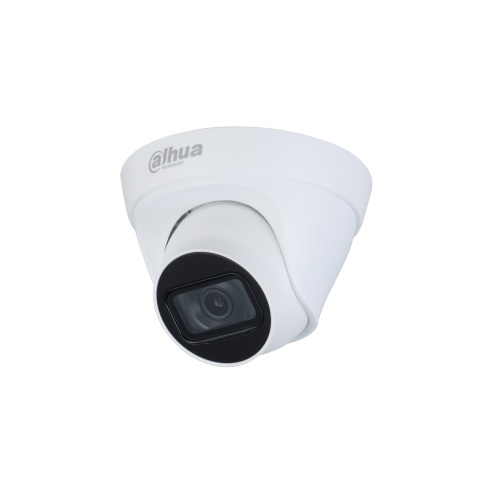

DAHUA-IPC-HDW1431T1 4MP Entry IR Fixed-focal Eyeball Network Camera features of simple installation, easy operation, and a high performance-cost ratio, Dahua Entry Series camera is applicable to small and medium-sized scenes, such as homes/residences, small-sized retail stores, and other small and medium-sized enterprises.

Smart Illumination

Dahua Smart Illumination technology can display images in an environment of low illuminance or completely dark environments. According to the distance of the targets, the camera adjusts Illumination intensity automatically to show the details of the moving target.

Cyber Security

Dahua-IPC-HDW1431T1 network cameras employ a series of security technologies, including security authentication and authorization, access control protocols, trusted protection, encrypted transmission, and encrypted storage. These technologies improve the camera’s defense against external cyber threats and prevent malicious programs from comprising the device.

DAHUA-IPC-HDW1431T1 Specification

Camera

Image Sensor

1/3”4Megapixel progressive CMOS

Max. Resolution

2688 (H) ×1520 (V)

ROM

128 MB

RAM

128 MB

Scanning System

Progressive

Electronic Shutter Speed

Auto/Manual 1/3 s–1/100000 s

S/N Ratio

> 56 dB

Min. Illumination

0.03 Lux @ F2.0

Illumination Distance

30 m (98.4 ft)

Illuminator On/Off Control

Auto/Manual

Illuminator Number

1(IR LED)

Pan/Tilt/Rotation Range

Pan: 0°–355°
Tilt: 0°–78°
Rotation: 0°–360°

Lens

Lens Type

Fixed-focal

Mount Type

M12

Focal Length

2.8 mm
3.6 mm

Max. Aperture

F2.0

Field of View

2.8 mm:
Horizontal: 93°
Vertical: 53°
Diagonal: 111°
3.6 mm:
Horizontal: 81°
Vertical: 44°
Diagonal: 95°

Iris Type

Fixed

Close Focus Distance

2.8 mm: 0.8 m (2.6 ft)
3.6 mm: 1.4 m (4.6 ft)

DORI Distance

Lens

Detect

Observe

Recognize

Identify

2.8mm

50.0 m

(183.7 ft)

22.4 m

(73.5 ft)

11.2 m

(36.7 ft)

15.1 m

(18.4 ft)

3.6mm

80.0 m

(262.5 ft)

32.0 m

(105.0 ft)

16.0 m

(52.5 ft)

8.0 m

(26.2 ft)

Video

Video Compression

H.265; H.264; H.264B; MJPEG (only supported

by sub stream)

Smart Codec

Smart H.265+/ Smart H.264+

Video Frame Rate

Main Stream:
2688 × 1520 (1 fps–20 fps)
2560 × 1440 (1 fps–25/30 fps)
Sub Stream:
704 × 576 (1 fps–20/25 fps)
704 × 480 (1 fps–20/30 fps)

Stream Capability

2 streams

Resolution

2688 × 1520 (2688 × 1520); 2560 × 1440 (2560 × 1440); 2304 × 1296 (2304 × 1296); 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 ×240)

Bit Rate Control

CBR; VBR

Video Bit Rate

H.264: 32 kbps–6144 kbps
H.265: 12 kbps–6144 kbps

Day/Night

Auto (ICR)/Color/B/W

BLC

Yes

HLC

Yes

WDR

120 dB

White Balance

Auto/natural/street lamp/outdoor/manual/regional custom

Gain Control

Manual/Auto

Noise Reduction

3D NR

Motion Detection

OFF/ON (4 areas, rectangular)

Region of Interest (Roi)

Yes (4 areas)

Smart Illumination

Yes

Image Rotation

0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)

Mirror

Yes

Privacy Masking

4 areas

Alarm

Alarm Event

Network disconnection; IP conflict; motion detection; video tampering; illegal access; voltage detection; security exception

Network

Network

RJ-45 (10/100 Base-T)

SDK and API

Yes

Cyber Security

Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade

Protocol

IPv4; IPv6; HTTP; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; PPPoE; Bonjour

Interoperability

ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P

User/Host

Storage

FTP; SFTP; NAS

Browser

IE
Chrome
Firefox

Management Software

Smart PSS; DSS; DMSS

Mobile Phone

IOS; Android

Certification

Certifications

CE-LVD: EN62368-1
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU
FCC: 47 CFR FCC Part 15, Subpart B

Power

Power Supply

12V DC/POE (802.3af)

Power Consumption

< 5.1W

Environment

Operating Conditions

-40°C to +55°C (-40°F to +131°F) /less than≤95%

Storage Conditions

-40°C to +60°C (-40°F to +140°F)

Protection

IP67

Structure

Casing

Inner core: metal+ plastic; cover: plastic

Dimensions

85.5 mm × Φ109 mm (3.4″ × Φ4.3″)

Net Weight

0.25 kg (0.6 Lb)

Gross Weight

0.37 kg (0.8 Lb)
