NVR 4432-4K Features

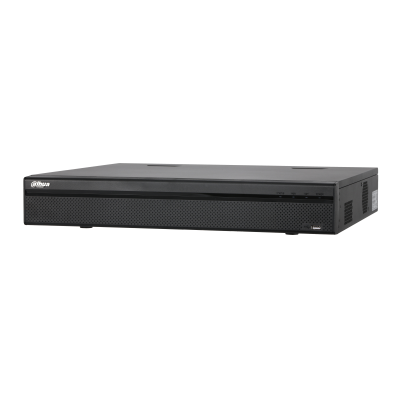

Dahua NVR 4432-4K Up to Support 32 IP camera input
32 Channel 1.5U 4K&H.265 Lite Network Video Recorder> H.265/H.264 codec decoding
> Max 200Mbps Incoming Bandwidth
> Up to 8MP Resolution for Preview and Playback
> HDMI/VGA simultaneous video output
> Support ANR technology to enhance the storage reliability when the network break downNVR 4432-4K Specifications
System Main Processor Quad-core embedded processor Operating System Embedded LINUX Display Interface 1 HDMI, 1 VGA Resolution 3840×2160, 1920×1080, 1280×1024, 1280×720, 1024×768 Multi-screen Display 1/4/8/9/16 OSD Camera title, Time, Video loss, Camera lock, Motion detection, Recording Video Detection and Alarm Trigger Events Recording, PTZ, Tour, Alarm out, Video Push, Email, FTP, Snapshot, Buzzer & Screen tips Video Detection Motion Detection, MD Zones: 396(22×18), Video Loss & Tampering Alarm input 16 Channel, Low Level Effective, Green Terminal Interface
Relay Output 4 Channel, NO/NC Programmable, Green Terminal Interface
Playback and Backup Playback 1/4/8/16 Search Mode Time/Date, Alarm, MD & Exact search (accurate to second), Smart search
Playback Function Play, Pause, Stop, Rewind, Fast play, Slow Play, Next File, Previous File, Next Camera,
Previous Camera, Full Screen, Repeat, Shuffle, Backup Selection, Digital Zoom
Backup Mode USB Device/Network Storage Internal HDD 4 SATA III Port, Up to 6 TB capacity for each HDD HDD Mode Single eSATA N/A Auxiliary Interface USB 2 USB Ports (1 USB2.0, 1 USB3.0) RS232 1 Port, for PC Communication and Keyboard RS485 1 Port, for PTZ Control Third-party Support Third-party Support Dahua, Arecont Vision, AXIS, Bosch, Brickcom, Canon, CP Plus, Dynacolor, Honeywell, Panasonic,
Pelco, Samsung, Sanyo, Sony, Videotec, and more
Audio and Video IP Camera Input 16/32 Channel Two-way Talk 1 Channel Input, 1 Channel Output, RCA Recording Compression H.265/H.264 Resolution 8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. Record Rate 200Mbps Bit Rate 16Kbps ~ 20Mbps Per Channel Record Mode Manual, Schedule (Regular, Continuous), MD (Video detection: Motion Detection, Tampering, Video Loss), Stop Record Interval 1 ~ 120 min (default: 60 min), Pre-record: 1 ~ 30 sec, Post-record: 10 ~ 300 sec
Network Interface 2 RJ-45 Ports(10/100/1000Mbps) Ethernet Port 2 Ethernet Ports Joint Working or 2 Independent 1000Mbps Ethernet Ports
PoE N/A Network Function HTTP, HTTPS, TCP/IP, IPv4/IPv6, UPnP, RTSP, UDP, SMTP, NTP, DNS, IP Filter, PPPoE,DDNS, FTP, IP Search (Support Dahua IP camera, DVR, NVS, etc.), Easy4ip
Max. User Access 128 users Smart Phone iPhone, iPad, Android Interoperability ONVIF 2.4, CGI Conformant Electrical Power Supply AC100V ~ 240V, 50 ~ 60 Hz Power Consumption <11.7W (Without HDD) Environmental Operating Conditions -10°C ~ +55°C (+14°F ~ +131°F), 86 ~ 106kpa Storage Conditions -20°C ~ +70°C (-4°F ~ +158°F), 0 ~ 90% RH Construction Dimensions 1.5U, 440mm×411.1mm×76mm (17.3″ x 16.2″ x 3.0″)
Net Weight 4.5kg (9.9 lb) (without HDD) Gross Weight 7kg(15.4 lb)(without HDD) Certifications CE EN55032, EN55024, EN50130-4, EN60950-1 FCC Part 15 Subpart B, ANSI C63.4-2014 UL UL60950-1+CAN/CSA C22.2 No.60950-1 Product Summery
32 CH NETWORK VIDEO RECORDER (NVR)
32 CH IP Camera Inputs
Max 200 Mbps Bit rate input
Compatible with 5Mp, 3Mp, 1080P , 720P & D1
HDMI & VGA Output up to 1080 P
04 HDD ( Up to 24 TB )
