S1010-8P-120 | 8 Port POE Switch

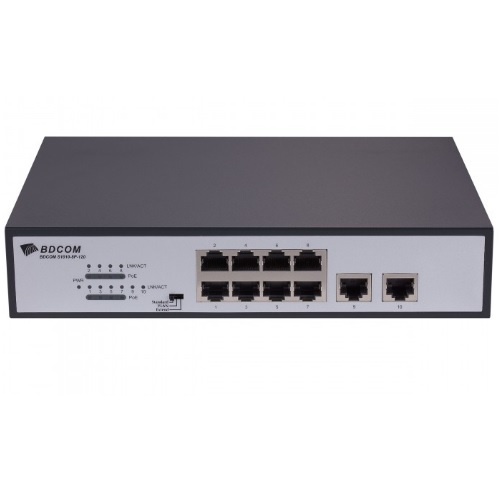

BDCOM-S1010-8P-120 BDCOM 10-port 10/100 POE switch with 8 POE ports & 2 Base-T ports

The BDCOM-S1010-8P-120 is a 100Mbps, 8 port, 120W unmanaged POE switch with a large
buffer memory and 2 x 100Mbps uplink ports. It is designed for all PoE related network
requirements, including IP surveillance, Voice over IP, Wi-Fi Access Points. Its Plug and Play
feature, allows for seamless integration and zero configuration when being deployed

Features:
> Unmanage 8 port POE Switch
> 8 100M POE Ports
> 2 1000M Base-T ports
> 120W POE power consumption
> Switching Capacity 2Gbps
> Fan less
> Standard 220V power supply
> Desktop switch
> Thunder-proof 6KV

Switching Characteristics
Non-block switching architecture and wire-speed forwarding supported by all ports;
Integrated professional thunder-proof electric circuit, which is adaptable to the outdoor environment;
Large buffer memory with no video interruption;
IEEE802.3x full duplex flow control and Backpressure half-duplex flow control;
Operating status monitoring and fault analysis through indicators on the panel.

Practicability
Plug and play; no need of configuration;
Easy and secure device maintenance;
Easy and convenient installation

Flexible Networking Capacity
BDCOM S1000 Series supports 6 10M/100M or 10 10M/100M Base-T ports, which can meet the access
requirement of different network scales. S1006-4P-65 and S1010-8P-120 support two uplink 100M Base-T
ports, which can connect to the core network and greatly expand the usage of the device.

S1010-8P-120 Technical Specifications :

Item : S1010-8P-120
Switching capacity : 7.2G
MAC capacity : 4K
POE power supply : 8-port 802.3af/at
POE max power : 120W
Power supply : AC: 100~220V, 50Hz±10%

Environment : Operating temperature/humidity: 0°C-40°C, 10%-90% non-condensing Storage temperature/humidity: -40°C-70°C ; 5%-95% non-condensing
Heat dissipation : Fanless
Thunder proof : 6KV
