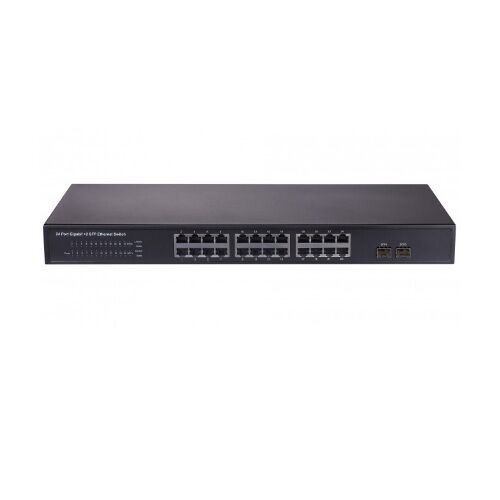

S1526-24P-400 BDCOM (S1500 Series) is a full gigabit large power POE switch
S1526-24P-400 BDCOM S1500-P Series is a full gigabit large power POE switch introduced by BDCOM. It is
designed for the video surveillance and wireless coverage in the medium and small networks.
Unmanaged Ethernet POE switch with 24 gigabit POE Base-T ports, 2 gigabit SFP ports, large buffer,
lightning protection, AC 220V，370W POE power, rack-mounted installation.
Features
Switching Characteristics
> Non-block switching architecture and wire-speed forwarding supported by all ports;
> Integrated professional thunder-proof electric circuit, which is adaptable to the outdoor
environment;
> Large buffer memory with no video interruption;
> IEEE802.3x full duplex flow control and Backpressure half-duplex flow control;
> Operating status monitoring and fault analysis through indicators on the panel.
POE Characteristics
> It can automatically detect and identify the PD complying with IEEE 802.3 af/at;
> Large power supply; up to 32W output power on the POE port;
> Smart power management and POE overload alarm;
> CCTV; up to 250m effective power supply distance.
Practicability
> Plug and play; no need of configuration;
> Easy and secure device maintenance;
> Easy and convenient installation
S1526-24P-400 Technical Specification :
Item : S1526-24P-400
Switching capacity : 64G
Ports : 24 gigabit POE ports + 2 gigabit SFP ports
POE : 802.3af/at
POE max power : 380W
Power supply : AC: 100~220V, 50Hz±10%
Environment : Operating temperature/humidity: 0℃-40℃, 10%-90% non-condensing
Storage temperature/humidity: -40℃-70℃; 5%-95% non-condensing
Thunder-proof level : 6KV
Heat dissipation : Support
Input voltage : AC 100-240V 50/60Hzn
