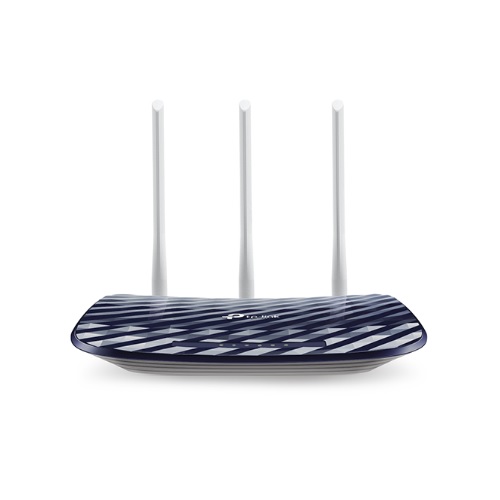

TP-LINK Archer C20 AC750 Wireless Dual Band Router

TP-LINK Archer C20 AC750 Overview:

Supports 802.11ac standard – the next generation of Wi-Fi
Simultaneous 2.4GHz 300Mbps and 5GHz 433Mbps connections for 733Mbps of total available bandwidth
2 external antennas provide stable omnidirectional signal and superior wireless coverage
USB port – share a printer locally and files & media with networked devices or remotely via FTP server

TP-LINK Archer C20 AC750 Specification:

HARDWARE FEATURES
Interface	4 10/100Mbps LAN ports 1 10/100Mbps WAN port 1 USB 2.0 port
Button	WPS/Reset Button Wireless On/Off Switch Power On/Off Button
External Power Supply	12VDC /1A
Dimensions ( W x D x H )	9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna	2 × 2.4GHz Antennas 1 × 5GHz Antenna
Antenna Type	Two dual-band fixed antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps
Reception Sensitivity	5GHz 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, 11n HT20: -71dBm, 11n HT40: -69dBm 2.4GHz 11g 54M: -76dBm 11n HT20: -74dBm, 11n HT40: -71dBm
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm

SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control
Management	Access Control Local Management Remote Management
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comex, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall IP Address Filtering/MAC Address Filtering/Domain Filtering IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
USB Sharing	Support Samba(Storage)/ FTP Server/Media Server/Printer Server
Guest Network	2.4GHz guest network × 1 5GHz guest network × 1

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC750 Wireless Dual Band Router Archer C20 2 Fixed Antennas Power Supply Unit Resource CD Ethernet Cable Quick Installation Guide
Box Dimensions (W X D X H)	11.2 x 8.8 x 3.6 in. (285x223x91mm)
System Requirements	Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system
Environment	Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing

-17%

Original price was: ৳ 2,702.50.Current price is: ৳ 2,250.00.

Categories: Router, TP-Link

Description

HARDWARE FEATURES
Interface	4 10/100Mbps LAN ports 1 10/100Mbps WAN port 1 USB 2.0 port
Button	WPS/Reset Button Wireless On/Off Switch Power On/Off Button
External Power Supply	12VDC /1A
Dimensions ( W x D x H )	9.1 x 5.7 x 1.4 in. (230 x 144 x 35mm)
Antenna	2 × 2.4GHz Antennas 1 × 5GHz Antenna
Antenna Type	Two dual-band fixed antennas

WIRELESS FEATURES
Wireless Standards	IEEE 802.11ac/n/a 5GHz IEEE 802.11b/g/n 2.4GHz
Frequency	2.4GHz and 5GHz
Signal Rate	5GHz: Up to 433Mbps 2.4GHz: Up to 300Mbps
Reception Sensitivity	5GHz 11a 6Mbps: -91dBm, 11a 54Mbps: -74dBm 11ac HT20: -66dBm, 11ac HT40: -64dBm, 11ac HT80: -61dBm, 11n HT20: -71dBm, 11n HT40: -69dBm 2.4GHz 11g 54M: -76dBm 11n HT20: -74dBm, 11n HT40: -71dBm
Wireless Functions	Enable/Disable Wireless Radio, WDS Bridge, WMM, Wireless Statistics
Wireless Security	64/128-bit WEP,WPA / WPA2,WPA-PSK/ WPA2-PSK encryption
Transmission Power	CE: <20dBm(2.4GHz) <23dBm(5GHz) FCC: <30dBm

SOFTWARE FEATURES
Quality of Service	WMM, Bandwidth Control
Management	Access Control Local Management Remote Management
Port Forwarding	Virtual Server, Port Triggering, UPnP, DMZ
Dynamic DNS	DynDns, Comex, NO-IP
VPN Pass-Through	PPTP, L2TP, IPSec
Access Control	Parental Control, Local Management Control, Host List, Access Schedule, Rule Management
Firewall Security	DoS, SPI Firewall IP Address Filtering/MAC Address Filtering/Domain Filtering IP and MAC Address Binding
Protocols	Supports IPv4 and IPv6
USB Sharing	Support Samba(Storage)/ FTP Server/Media Server/Printer Server
Guest Network	2.4GHz guest network × 1 5GHz guest network × 1

OTHERS
Certification	CE, FCC, RoHS
Package Contents	AC750 Wireless Dual Band Router Archer C20 2 Fixed Antennas Power Supply Unit Resource CD Ethernet Cable Quick Installation Guide
Box Dimensions (W X D X H)	11.2 x 8.8 x 3.6 in. (285x223x91mm)
System Requirements	Windows 10/8.1/8/7/Vista/XP, Mac OS or Linux-based operating system
Environment	Operating Temperature: 0℃~40 ℃ (32 ℉~104℉) Storage Temperature: -40℃~70 ℃ (-40 ℉~158℉) Operating Humidity: 10%~90% non-condensing Storage Humidity: 5%~90% non-condensing
